TECH TUESDAY: Why gearbox layout could be key to solving the porpoising puzzle

Special Contributor

Mark Hughes
Share

As Mercedes continue to struggle with their porpoising issues, leaving Ferrari and Red Bull to fight it out at the front of the races, there is some mystification about why the Mercedes W13 should be up to one second slower than the Ferrari F1-75, even though the latter exhibits fairly severe porpoising too.

At Albert Park, at the end of the straight before the fast chicane of Turn 9, the Ferrari’s bouncing looked every bit as bad as that of the Mercedes. Yet Charles Leclerc won the race from pole for the Scuderia in dominant fashion.

READ MORE: How an electrical gremlin caused Sainz and Leclerc’s wildly contrasting weekends in Australia

First, we should clarify that aerodynamic porpoising is induced by downforce – and that downforce is the key to lap time. Lando Norris – whose McLaren is relatively immune from porpoising but also lacking in downforce – put it like this: “We don’t have much porpoising. But porpoising is not necessarily a bad thing. For some cars they are gaining performance from the thing which causes the porpoising.”

Norris would surely surrender his smooth ride in exchange for lap time.

Porpoising Boxplot

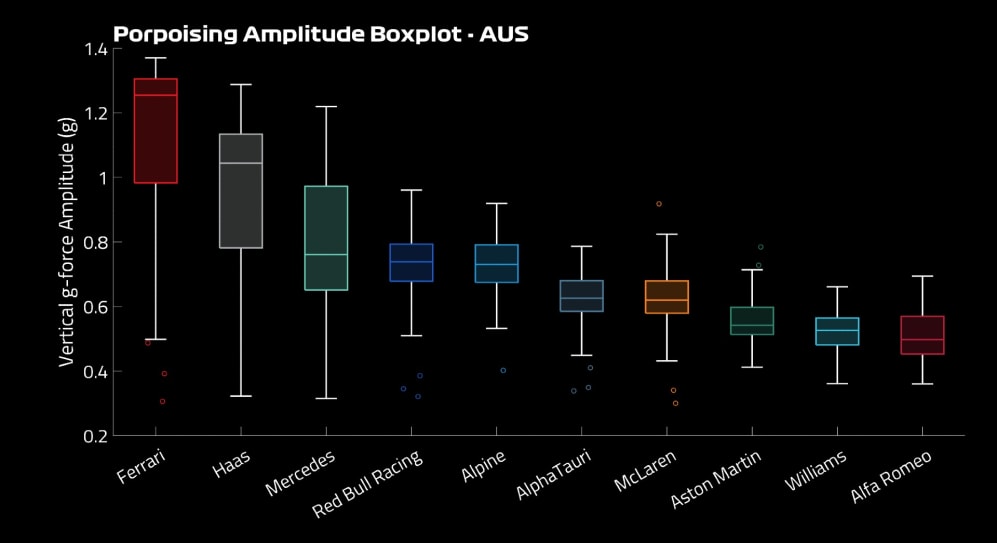

The above graph shows the amplitude of porpoising on the various cars. Although Ferrari faced up to 1.4G of porpoising during the Australian GP, they didn't lose considerable lap time to their rivals

But the important distinction between the porpoising of the Mercedes and that of the Ferrari is that on the Mercedes, it is triggered at lower speeds than on the Ferrari. If this coincides with speeds at which any of the corners are taken, then the team will need to increase the ride height.

This will move the porpoising trigger point to a higher speed, allowing the corners to be bounce-free, but in the process it reduces downforce. It imposes a natural limit on the amount of downforce the car can tolerate.

READ MORE: Russell says first Mercedes podium and second-place in the championship is ‘pretty crazy’

On the Ferrari, the porpoising is clearly only being triggered at speeds beyond which the fastest corners are taken. Even the high-speed porpoising at the end of the straights could be eliminated but it would mean less downforce available for the corners (and braking).

Leclerc talked a little about it in Australia: “We need to tackle it because it can affect consistency. But it’s not like I could have gone faster if it wasn’t for the bouncing. The only time it was a factor was on the restarts I wasn’t confident I could brake extremely hard for Turn 1 on the restart because of the bouncing. But otherwise it was OK.”

Mercedes’ problem is not the bouncing per se, but the amount of downforce they have to surrender to keep it from doing it in the corners.

This feature is currently not available because you need to provide consent to functional cookies. Please update your

VISOR CAM: Carlos Sainz experiences porpoising in Australian GP first practice

From there, looking into why that might be, we must move into technical conjecture. It has been pointed out that the four cars with the Mercedes power unit – Mercedes, McLaren, Aston Martin and Williams – are all struggling for pace. Mercedes are around 1s off Ferrari. McLaren a further 0.5s adrift (on average) than that and trailing a couple of tenths behind Alpine. Aston Martin and Williams are the slowest of all.

But we know from GPS analysis that although the Mercedes power unit is slightly down on power to the Ferrari, the deficit accounts only for around 0.15s of lap time. Given that even Mercedes are 1s off the pace, the power unit cannot possibly be the main culprit for the performance shortfall of any of these teams.

READ MORE: Russell says Mercedes have ‘a lot of lap time on the table’ once car is optimised – but no upgrades due for ‘a number of races’

If we confine our study just to the three teams which use the Mercedes PU and gearbox (i.e. excluding McLaren), then we also see a correlation with that and the severity of the porpoising issue.

Correlation and causation are not necessarily the same but both Aston Martin and Williams know they could unleash a big chunk of performance, if only they were not having to raise the car away from the porpoising threshold.

MELBOURNE, AUSTRALIA - APRIL 10: Sergio Perez of Mexico driving the (11) Oracle Red Bull Racing

The big difference in design could still be causing frustrations for Mercedes

Why would a gearbox cause such an issue? The length of the gearbox casing is a reflection of how a team chooses to package the mechanical components of its car. If we look at the Mercedes, Williams and Aston, we can see that the sidepods and floor intake begin further back than on other cars. This maximises the distance between the front wheels and the sidepods, which is traditionally aerodynamically beneficial.

HIGHLIGHTS: Watch the action from a thrilling 2022 Australian Grand Prix

But to keep the car within the regulation wheelbase limit, this rearward-biased packaging of the radiators and associated apparatus means a short gearbox casing. If we look at the Ferrari and Haas (which share a PU and gearbox) we see that the sidepods are further forward and that much of the cooling apparatus is pushed up towards the front, giving a big, bluff front to the sidepods but allowing the rear bodywork to cut in more extensively.

Looked at from above, it is much more teardrop in shape than the Mercedes, Williams or Aston Martin (below).

The Red Bull and AlphaTauri are configured much more like the Ferrari, in this regard, than the Mercedes. As the sidepod volume begins and ends sooner, so the wheelbase is then defined by a longer gearbox casing.

Aston Martin

A top-down look at the Mercedes-powered Aston Martin (top) and Haas (below) shows a teardrop profile for the Ferrari-powered car, its cooling apparatus pushed towards the front

What might this have to do with porpoising? There are at least two possibilities:

  1. The wider bodywork at the rear may be contributing towards the airflow restriction of the underbody. The more teardrop-shaped upper bodyworks of the others should be able to exert a more helpful airflow over the top of the diffuser, potentially making the underbody tunnels more stall-resistant.

  2. Where the stall point is relative to the car’s centre of gravity could affect the severity of the bouncing. The short gearbox layout could be putting that centre of gravity at a really awkward point relative to the stall point of the underbody and inducing a leverage effect.

We should emphasise that none of this is anything other than conjecture and that the answers may in reality be very different. But there is something nagging about the correlation between the three cars using the same layout, and the severity of their bouncing problem.
