Tech insight - Ferrari’s Montreal modifications

Share
Ferrari SF70H - Canada brake

High speeds and heavy braking are two of the trademark characteristics of Montreal’s Circuit Gilles-Villeneuve, host of last weekend’s Formula 1 Grand Prix du Canada 2017, and all the teams made changes to their cars accordingly, including Ferrari…

Bigger braking

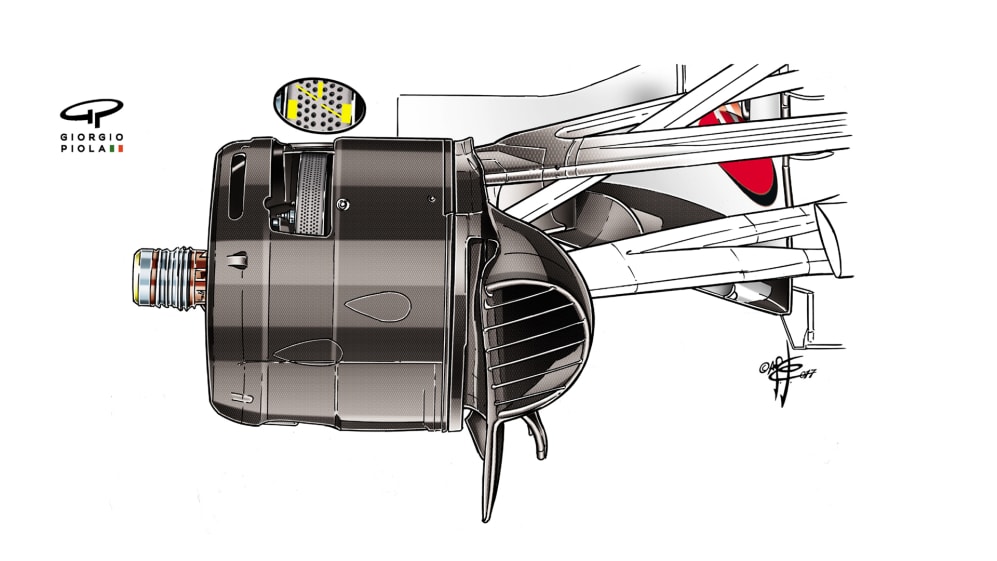

Ferrari tried various brake duct set-ups in Friday’s practice sessions on the Ile Notre-Dame and went for this option for the 70-lap race. You can clearly see the new Brembo brake disc, which features six holes across its circumference. Unusually, the holes are aligned diagonally – see inset, yellow highlights. Even with these modifications, Kimi Raikkonen still suffered from brake problems which slowed him in the latter stages of the race – illustrating just how punishing Montreal is in this area.

Ferrari SF70H - Canada rear

Ditching the drag

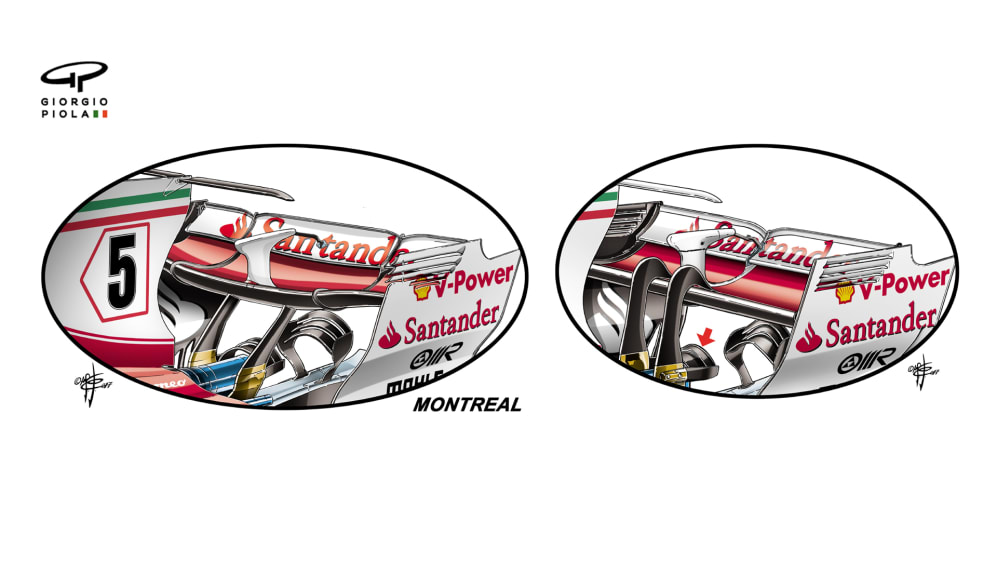

Ferrari introduced a new spoon-shaped rear wing in Canada, where minimising drag aids the high top speeds needed. But it wasn’t just the wing itself that was new. The two wing supports are no longer attached to the top of the main plane as before (right-hand drawing), but instead to its underside. The endplates are also very different, featuring for the first time on the SF70H gills that are open on the endplate’s leading edge, like those introduced by Toro Rosso last year and subsequently copied by numerous other teams.

Ferrari SF70H - Canada turning

All in the detail

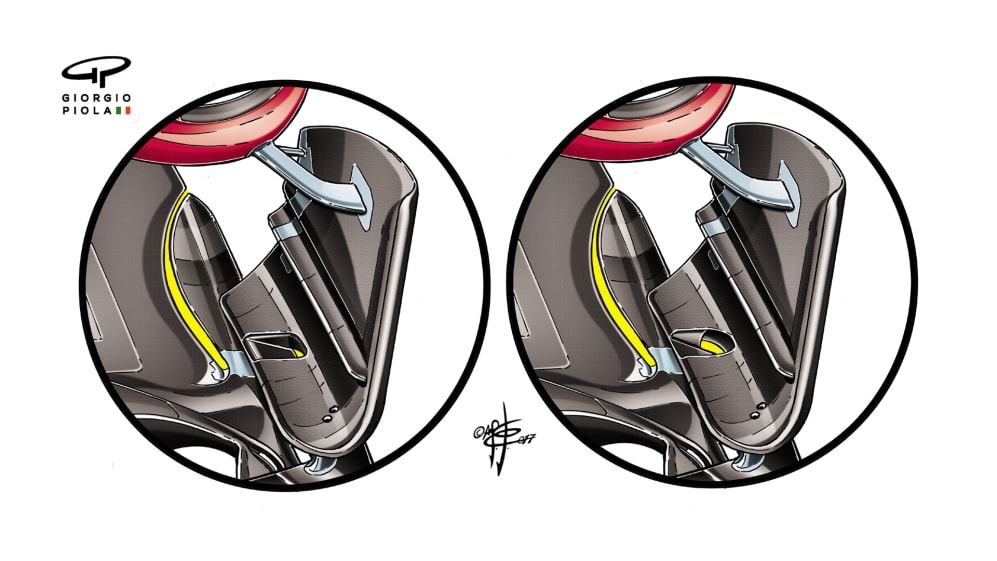

This small – but worthwhile - change shows just how much detail teams go into in order to evolve their aerodynamics. The picture on the left shows the solution used in Canada for the airflow conditioner in front of the sidepods. It features an updated, simpler design for the shape of the transverse slot in its base (previous version on right) in order to better manage the airflow in this critical area of the car.
